The Gold Standard in Pressure Relief for Alternating Pressure Air Mattresses, Featuring Best-Designed Innovation for patients and caregivers.
For patients facing the challenges of stage 1 to 4 pressure sores and spending extended periods in bed (15+ hours daily), we proudly present the Obbomed OB-1680 StandardAir Ulcer Prevention Mattress – the undisputed Rolls-Royce of pressure relief. 1 This isn’t just a mattress; it’s a comprehensive care and prevention system meticulously engineered to provide unparalleled comfort, support, and safety
OB-1680 Mattress dimension and weight specifications:
Mattress Dimensions
80 in. Long by 36 in. Wide
Mattress Height
From 7 in. to 11 in.
Weight Capacity
450 Pounds
Mattress Weight
22 Pounds
Control Unit Weight
15.5 Pounds
Functions
Alteration, Easy-Go Bedpan (Manual) and Shampoo (Manual), 4 inch Inflatable Guardrail (Manual), 15° Self-lateral Rotation,
25° Right / Left / Auto Rotation, 40° Lateral Rotation, Air Flow Fan
Rotation Angles
15, 25, and 40 Degrees
Alternating Cycle Time
10, 20, 30, and 40 Minutes
Rotation Circle
10, 20, 30, 40, 60, 90, and 120 Minutes
Pump
30 LPM
Low Air Loss
15 LPM
Warranty
1 Year on Top Cover, 2 Years on Control Unit and Mattress
Unit Package Dimensions
19.3 in. Long by 16.9 in. Wide by 26.4 in. High
Unit Package Weight
41.7 Pounds
Unwavering Patient Safety, Trusted Across Diverse Care Settings.
Alternating Pressure Function:This mattress offers customizable alternating pressure cycles of 10, 20, 30, and 40 minutes.By cyclically inflating and deflating air cells, it continuously redistributes pressure, preventing prolonged stress on vulnerable areas.This dynamic action stimulates blood flow, significantly reducing the risk of pressure sores for bedridden or immobile individuals.Users can select the cycle time that best suits their comfort and therapeutic needs.
Fowler & Seating Support:The Fowler function enhances support in the seat and torso sections when the head of the bed is elevated.This design aims to prevent patients from bottoming out, ensuring consistent support and reducing the risk of pressure injuries in seated positions.
Features of ObboMed’s Top Cover:
German-made 4-way stretch polyurethane (PU) leather top cover with quilted underside to minimize friction and shearing of skin. Machine washable.
Antimicrobial properties, biocompatible, anti-allergic and anti-irritating. Free of latex, lead and mercury.
Permeable material allows perspiration to vacate through the top cover to remove moisture and body heat by Low Air Loss.
Air cells are composed of thermoplastic polyurethane (TPU) and nylon. Through ultrasonic high-frequency sealing, the air cells are heat-melt airtight.
Liquid-proof and fireproof (complies with US standards: 16 CFR 1632, 16 CFR 1633, TB129)

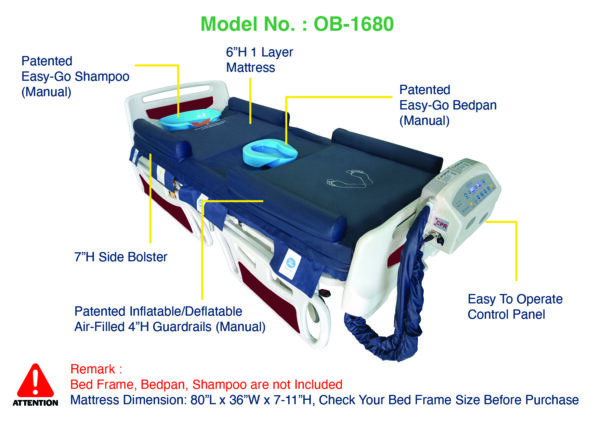

Patented Innovation feature (only in Obbomed)
Patented “Easy Go” Bedpan Function (Manual) :
The patented “Easy Go” bedpan feature offers a simple, manual solution for in-bed toileting. By pushing the “Quick Release Valve,” caregivers can deflate the mattress in just 20 seconds, creating a recessed opening on the top cover to accommodate a bedpan. Reinserting the valve quickly re-inflates the mattress, restoring it to its original shape. This innovative bedpan system is designed for in-bed toileting, significantly reducing patient discomfort during transfers and minimizing the caregiver’s physical workload. Ideal for bedridden patients, this feature enhances both safety and hygiene.
Patented “Easy Go” Shampoo Function (Manual) :
The patented “Easy Go” shampoo feature offers a simple, manual solution for in-bed hair washing. By pushing the “Quick Release Valve,” caregivers can deflate the mattress in just 20 seconds, creating a recessed opening on the top cover to accommodate a shampoo basin. Reinserting the valve quickly re-inflates the mattress, restoring it to its original shape. This simplifies hair washing for immobile patients, avoids unnecessary movement, and provides greater comfort for both patient and caregiver.
Our patented inflatable air-filled guardrails offer a safe, supportive, and patient-friendly alternative to traditional metal side rails. Mid-section opening guardrail allows safe and easy patient entry and exit. Operated with a single button, these soft yet firm air-filled rails can be inflated or deflated as needed. They are designed to prevent falls without the risk of injury, such as bruising, commonly associated with metal guardrails—making them perfect for long-term care or home health settings.
Multiple Rotation Angles (15°/25°/40°):
Designed to accommodate various patient needs, the mattress offers multiple rotation angles of 15°, 25° Right / 25°Left / 25°Auto Rotation, 40° Auto Rotation.This feature increases patient activity, assists in lung function by facilitating phlegm expulsion, reduces the risk of pulmonary infections, and enhances overall physical therapy outcomes.
15° Self-Lateral Rotation:
Utilizing specialized air cells, the mattress provides a 15-degree self-lateral rotation by continuously inflating and deflating specific cells.This gentle wave-like motion redistributes the user’s weight, helps improve sleep, alleviates pressure points, stimulates blood circulation, and aids in the prevention of bedsores.
Sinking Feature with Centralization:
The mattress incorporates a sinking feature that lowers the surface up to 4 inches, plus patented 4″ guardrail to create a 8-inch deep soft barrier. This design ensures patient centralization during alternating pressure and self-lateral rotation, maintaining safety even during 40-degree rotations while allowing easy access for caregivers.
Comfort-Focused True Low Air Loss (LAL) Therapy + Built-in Air Flow Fan :
Positioned beneath the cover layer, the Comfort-Focused LAL system delivers airflow at 15 liters per minute combined with a built-in airflow fan, this powerful ventilation system effectively removes moisture and regulates moisture and heat around the patient’s skin, helping to maintain a dry and comfortable microclimate. The result is enhanced comfort and improved skin protection—especially vital for individuals of all ages dealing with stage 1 to stage 4 pressure ulcers.
